GROUND CONTROL STATION FOR UNMANNED VEHICLES
OUR GROUND CONTROL STATION
UXV CENTER’s GmbH Ground Control Station (GCS) includes a mission planner which is our “DeviceMeter” (software to manage, monitor and track your communication devices), a live-streaming platform (Underwater and Surveillance camera of live- streaming),Telemetry data and payload or useful load control functions through communications systems and data links to communicate with the unmanned vehicle platform and its onboard systems.
This Ground Control System is compatible with any other type of unmanned vehicle platform.
HOW DOES IT WORK
A compact computer to stay in control
A powerful mini computer, integrated in the processes of the UXVs. With 64 Gb of RAM, this computer will showcase the status of the USV and will work as an external board.
This solution carries a combination of software and hardware and can easily control and monitor your UXVs, provide security for the servers and get connected to any screen available to visualize the data that it contains.
It has a DDR4 SO-DIMM and Dualboot operating system on both Windows 10 Pro and Linux Mint, for faster rendering, easily working with massive files and running multiple
software.
This solution carries a combination of software and hardware and can easily control and monitor your UXVs, provide security for the servers and get connected to any screen available to visualize the data that it contains.
It has a DDR4 SO-DIMM and Dualboot operating system on both Windows 10 Pro and Linux Mint, for faster rendering, easily working with massive files and running multiple
software.

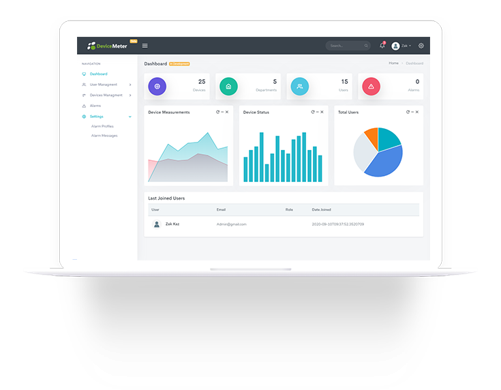

DeviceMeter, the right software to manage all your systems
Device Meter’s vision is to facilitate the management, monitoring and tracking of any type of communication device (e.g. sensors, monitoring devices, drones and aircraft) from your place in a real time.
It allows receiving, processing and storing the recorded data, in addition to managing the devices, analyzing the data and statistics presented by graphs on the dashboard. As well as improving security measures related to the use of these devices.
For our USV System, this tracking software is necessary to
keep an eye on all the devices of the solution.
Discover more about DeviceMeter.
For our USV System, this tracking software is necessary to
keep an eye on all the devices of the solution.
Discover more about DeviceMeter.
Features
| DESIGNATION | SPECIFICATIONS |
| MINI PC |
Model: NUC BOX-1165G7 Intel® 11th Gen (Tiger Lake-UP3) Core™ Processors 2 x 260-pin SO-DIMM up to 64GB DDR4 3200 MHz 5 x USB 3.2 Gen2, 1 x M.2 Key M, 1 x M.2 Key E (WiFi-6), 1 x SATA3 1 x Intel 1 Gigabit LAN, 1 x Intel 2.5 Gigabit LAN Supports Quad display, 1 x HDMI 2.0a, 3 x DP 1.4 (2 from Type C) TPM 2.0 on board IC 19V/90W Power Adapter 110.0 x 117.5 x 47.85mm, Fanned Bare bone |
| BATTERY |
Lithium battery Output : 24v, Capacity: 50Ah |
| SCREEN | 2*screen 4k, Power 12v |
| SPEAKER |
Speaker type: Bluetooth |
| JOYSTICK | Sealing : IP55, Output : USB |
| KEYBOARD |
Industrial Stainless Steel Keyboard with 67 Keys, Waterproof Medical Trackball, Information Kiosk |
| MULTIPORT ADAPTER | port UCB 3.0, 2*Rj45, VGA, HDMI |

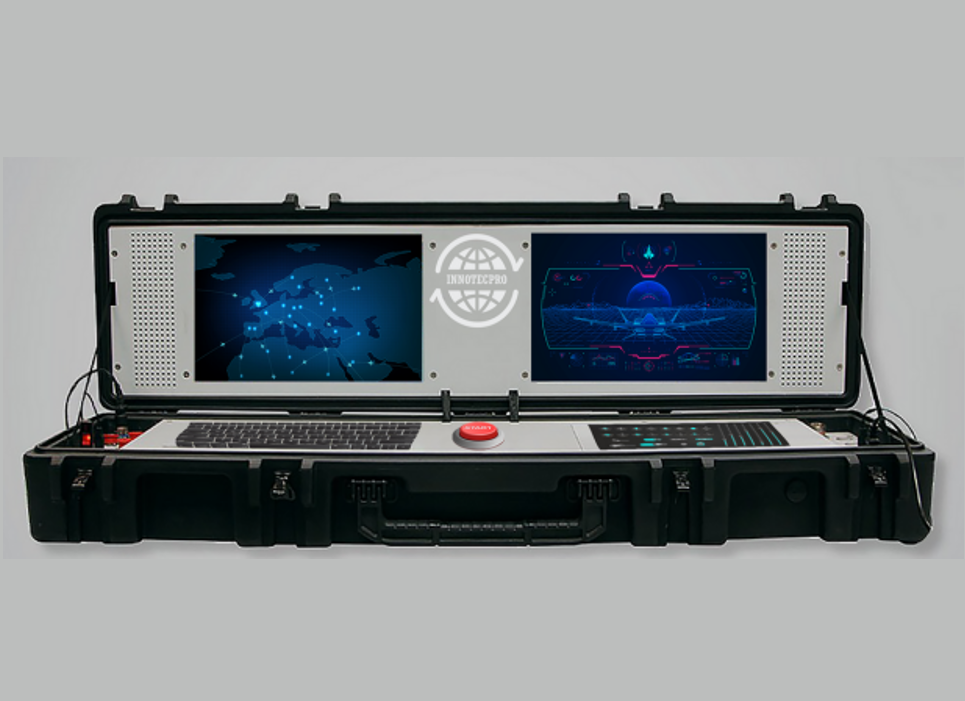

A CUSTOMIZABLE ground control Station
The Ground Control Station is fully configurable according to the user’s needs. The basic model is portable as a case, and includes a high power computer with its corresponding big screen (sunlight readable). It includes a remote control, which can transmit HD videos and telemetry data up to 20 km between the ground station and the unmanned vehicle, ant displays all necessary parameters to supervise the mission.
With different performance characteristics and technical specifications, we can design the most suitable ground control station to meet all your requirements.
With different performance characteristics and technical specifications, we can design the most suitable ground control station to meet all your requirements.
